Advancing Biodiesel Production: Process Innovation and Catalyst Optimization Led by Tree Chem

Biodiesel production has undergone a profound transformation as the global renewable fuel industry shifts from traditional refined vegetable oils toward more complex, variable, and low-cost feedstocks. The increasing adoption of used cooking oil (UCO), acid oils, animal fats, trap grease, and mixed waste lipids has elevated both the technical challenges and economic opportunities associated with biodiesel manufacturing. These feedstocks offer significantly higher greenhouse-gas savings and enable circular-economy pathways that align with modern decarbonization policies. However, they also introduce volatility in process behavior, catalyst performance, and downstream separations. As a result, systematic innovation in pretreatment, transesterification, catalyst selection, process intensification, and quality-assurance strategies has become essential for stable industrial operation.

Tree Chem has emerged as a technology-oriented supplier specializing in potassium-based catalysts, integrating chemical manufacturing expertise with engineering-oriented process optimization. This white paper synthesizes recent academic research, industrial case studies, and the company’s experience supporting biodiesel producers across multiple regions. It provides a modern, solution-centered perspective on improving biodiesel production efficiency—especially through the transition from traditional alkaline catalysts like potassium hydroxide (KOH) to high-activity potassium methoxide (KOMe).

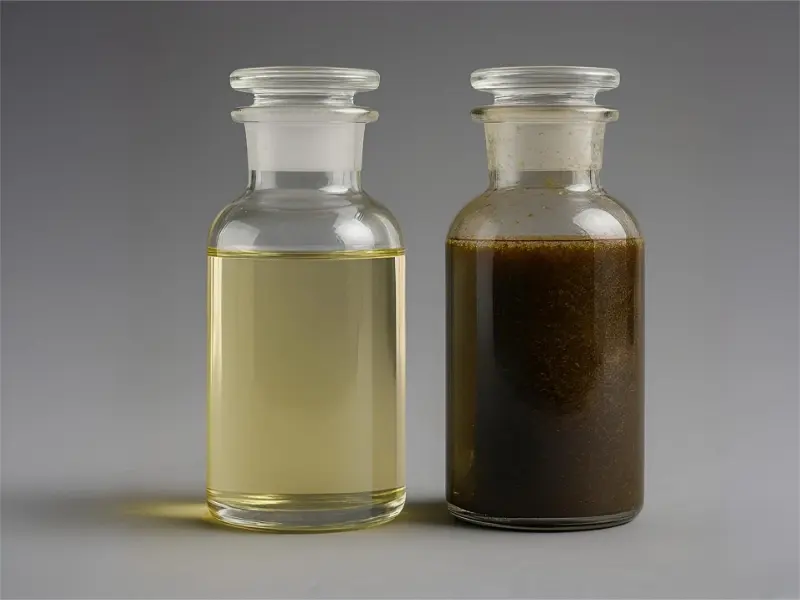

1. Introduction: Feedstock Variability and Its Impact on Process Design

The quality and consistency of biodiesel feedstocks define the complexity of the entire production chain. While refined vegetable oils typically contain less than 0.5% free fatty acids (FFA) with low moisture and minimal contaminants, waste-derived oils can contain:

• FFA levels exceeding 10–30%
• Water contamination arising from hydrolysis or improper storage
• Polymerized triglycerides and oxidative degradation by-products
• High solid content and metallic impurities
• Phospholipids and soaps formed from prior processing

These challenges pose two fundamental threats to alkaline transesterification:

1. Saponification, causing soap formation, emulsions, slow separation, and yield loss
2. Catalyst deactivation, especially in sodium-based systems

Academic literature (e.g., Vicente et al., 2021; Chhetri & Watts, 2022) consistently shows that feedstock with high FFA cannot be processed reliably using a single-step alkaline route. The industry increasingly relies on acid catalysis for pretreatment, followed by optimized alkaline transesterification.

Tree Chem integrates these scientific principles with field-tested recommendations to help customers stabilize the overall workflow, with special emphasis on using high-performance KOMe catalysts after pretreatment.

2. Acid Pretreatment: The Foundation of a Stable Process

2.1 Overview of Esterification for FFA Reduction

Acid esterification is essential when FFA levels exceed 2–3%. Sulfuric acid remains the dominant catalyst due to its strong acidity, cost-effectiveness, and high conversion of FFA into methyl esters. The reaction mechanism converts FFA into esters while consuming methanol and generating water as a by-product.

But achieving optimal conversion depends heavily on several engineering parameters:

• M/M ratio (methanol-to-FFA ratio)
• Mixing intensity and droplet-size reduction
• Catalyst concentration
• Reaction time and temperature
• Feedstock dehydration prior to esterification

Research indicates that excessive water formation—often ignored by small-scale producers—causes reaction suppression and emulsion formation downstream. Industrial operations must integrate in-line dehydration, vacuum flash tanks, or dry-wash media to keep water below 0.2%.

Tree Chem frequently collaborates with biodiesel producers to evaluate whether their pretreatment lines can consistently reduce feedstock acidity below 1%. When paired with potassium methoxide in the alkaline step, this stability dramatically improves separation and yield.

2.2 Neutralization and Washing Optimization

Many plants face problems during the transition from acid to alkaline stages. Residual sulfuric acid can deactivate alkali catalysts and intensify soap formation.

Tree Chem’s field research shows that using potassium-containing neutralizing agents (instead of sodium agents) reduces downstream incompatibility when switching to KOMe. This aligns with recent chemical-engineering research showing that potassium salts dissolve more uniformly, reducing precipitation and microemulsion formation.

Furthermore, side reactions involved in neutralization must be controlled to avoid excessive salt formation, which may increase viscosity and create operational challenges in pumps.

3. Transition to Alkaline Transesterification: Why KOH Is No Longer Enough

For many years, KOH has been the most widely used alkaline catalyst in biodiesel production. It is inexpensive, widely available, and well understood. However, KOH has several critical limitations:

• Forms soaps readily in the presence of water or residual FFA
• Produces emulsions that slow down glycerol separation
• Leaves higher levels of bound glycerol
• Causes more severe fouling in methanol recovery units
• Shows inconsistent performance with waste-oil feedstocks

These deficiencies become especially problematic in modern feedstock environments where impurity levels can fluctuate hourly.

Potassium methoxide (KOMe), by contrast, has become the preferred catalyst for high-performance biodiesel manufacturing due to its:

• Higher catalytic activity
• Better solubility in methanol
• Lower soap formation
• Cleaner glycerol separation (sharp interface)
• Reduced downstream reprocessing
• Enhanced performance with waste oils

Numerous studies confirm that KOMe catalysts produce higher conversion under identical conditions compared to KOH, particularly when FFA values are fluctuating.

Tree Chem’s application engineering groups have observed that plants converting from KOH to KOMe often report:

• 15–30% improvement in separation speed
• Up to 0.5–1.1% yield increase
• Measurably lower washing-water consumption
• Smoother methanol recovery
• Lower maintenance frequency in heat-exchanger and evaporator systems

4. Reaction Engineering: Optimizing KOMe-Based Transesterification

4.1 Mechanistic Advantages of KOMe

Transesterification is an interface-driven reaction between methanol and triglycerides. The catalytic reaction depends heavily on:

• Catalyst dissolution
• Droplet-size reduction under agitation
• Mass-transfer efficiency
• Methoxide ion availability
• Reaction temperature uniformity

KOMe’s strong nucleophilicity and excellent solubility create a more homogeneous reaction zone. This reduces the induction period and accelerates conversion. Key engineering findings include:

• Faster transformation of triglycerides to diglycerides and monoglycerides
• Lower mono- and diglyceride residues in final biodiesel
• Reduced catalyst dosage required to achieve equivalent conversion
• More stable operation in continuous reactors (CSTR, PFR, static mixers)

In high-throughput plants processing UCO or animal fats, this stability is crucial for daily operation efficiency.

4.2 Temperature and Residence-Time Optimization

Temperature fluctuations of ±5°C can cause major problems when using traditional catalysts. KOMe, however, remains active across a wider temperature range.

Continuous processes benefit from:

• Lower reaction temperatures
• Shorter residence time
• Reduced agitation energy
• Greater tolerance to small water amounts

Multiple academic studies (e.g., Sánchez et al., 2023) suggest that KOMe systems can reduce transesterification residence time by up to 40% under certain conditions.

5. Separation Science: How Process Improvements Enhance Biodiesel–Glycerol Phase Behavior

The separation of biodiesel and glycerol remains one of the most critical bottlenecks in industrial biodiesel production. Regardless of catalyst choice, feedstock quality, or reactor design, the behavior of the two-phase system after transesterification dictates whether production flows smoothly or becomes burdened with reprocessing, energy waste, and downtime. Modern biodiesel plants—especially those processing UCO, tallow, or mixed low-grade lipids—must account for the complex interplay between water, emulsifiers, monoglycerides, soap formation, and mechanical separation systems.

When using KOH or sodium methoxide (NaOMe), high FFA feedstocks tend to generate soap through saponification, causing microemulsions that trap glycerol within the methyl ester phase. This leads to cloudy biodiesel, slow settling, and ultimately higher downstream purification loads. In contrast, potassium methoxide (KOMe) suppresses excessive soap formation due to its more favorable ionic balance and superior methoxide-ion availability. The result is a clearer, sharper separation boundary, enabling gravity settling to occur more rapidly. Industrial surveys have repeatedly shown that the glycerol layer under KOMe-catalyzed reactions settles faster and with fewer suspended solids.

Tree Chem’s technical team has observed measurable improvements in the following parameters when KOMe is used:

• Lower interface viscosity, which accelerates stratification
• Cleaner glycerol phase, improving methanol recovery efficiency
• Reduced centrifugal load, lowering energy consumption
• Faster wash-water breakthrough, minimizing rewash cycles
• Lower soap residue, improving ester stability

These effects align with separation science fundamentals: the fewer amphiphilic particles present (such as monoglycerides and soaps), the stronger the density difference between the two phases, and the more predictable the separation behavior. Thus, process improvements in catalyst formulation directly extend into mechanical efficiency and purification economics.

6. Methanol Recovery and Energy Optimization

Methanol constitutes a major cost factor in biodiesel manufacturing. Recapturing methanol from the glycerol and ester phases is essential for environmental compliance and sustainable economic performance. Plants processing waste lipids often experience high fouling rates in methanol recovery units—primarily evaporators and distillation towers—due to soap precipitation and thermal degradation of contaminants.

KOH-based systems often exacerbate fouling due to the persistence of sodium salts and heavier soaps. Potassium methoxide, however, creates potassium-based soaps that are more soluble and less likely to deposit on heat-exchanger surfaces. This reduces maintenance frequency and increases uptime for methanol recovery systems.

Academic research supports this industrial trend: a study by López-Aguilar et al. (2022) showed that switching from NaOMe to KOMe reduced fouling in methanol evaporators by 20–35%, increasing heat-transfer efficiency and lowering steam consumption.

Tree Chem integrates these findings by recommending KOMe-based systems specifically for manufacturers running:

• High FFA feedstocks
• High-water-content UCO
• Mixed waste oils
• Acid oil with variable contaminants

Because these feedstocks inherently produce more impurities, the improved solubility profile of potassium salts becomes a critical asset for continuous operation.

7. Digital Process Optimization: From RSM to ANN and AI-Assisted Control

The biodiesel industry is undergoing rapid digital transformation. Plants increasingly rely on computational tools—such as Design of Experiments (DoE), Response Surface Methodology (RSM), Artificial Neural Networks (ANN), and machine-learning–based process controls—to optimize reaction variables.

7.1 RSM for Parameter Interaction Analysis

RSM is widely used to understand how temperature, catalyst dosage, M/O ratio, and reaction time interact. In systems using KOMe, RSM models often show:

• Higher sensitivity to methanol concentration
• Lower sensitivity to reaction time due to faster kinetics
• Improved conversion at slightly lower temperatures than KOH systems

Tree Chem frequently helps clients implement RSM-based optimization to reduce methanol usage and enhance overall economic performance.

7.2 ANN Models for Predictive Quality Control

ANN (Artificial Neural Networks) can model nonlinear relationships more effectively than classical regression. When trained on feedstock quality parameters—FFA, moisture, density, viscosity—ANN models can predict:

• Expected conversion efficiency
• Soap formation likelihood
• Required catalyst dosage
• Estimated separation time

Studies such as Gopal et al. (2023) demonstrate that ANN-based prediction significantly improves plant stability when feedstock quality fluctuates daily.

Tree Chem assists customers in integrating ANN tools into their SCADA or DCS systems, allowing real-time catalytic adjustments to KOMe addition rates.

7.3 The Future: AI-Assisted Process Control

With the evolution of AI, biodiesel production can expect:

• Self-optimizing reactors
• Predictive catalyst dosing
• Anomaly detection for fouling and separation failure
• Automated methanol-to-oil ratio control
• AI-based feedstock classification (image + spectroscopy)

Tree Chem’s engineering support team has begun implementing pilot AI-assisted dosing strategies for high-FFA UCO systems, producing measurable improvements in separation and yield stability.

8. Compliance with EN 14214 and ASTM D6751: Why Catalyst Choice Matters

Fuel-quality standards impose strict limits on several parameters:

• Total glycerol
• Free glycerol
• Monoglycerides
• CFPP
• Acid value
• Metals (K, Na, Ca, Mg)
• Water content
• Oxidation stability

In many industrial operations, failing these parameters results from upstream catalyst performance issues or inadequate separation.

KOMe-based systems help producers consistently meet these standards due to:

• More complete transesterification pathways
• Uniform catalyst dispersal
• Cleaner phase separation
• Lower formation of partial glycerides
• Reduced entrainment of catalyst residues

Especially for producers intending to export to Europe or meet low CI (Carbon Intensity) regulations, the consistency provided by KOMe directly enhances compliance reliability.

Tree Chem also offers routine quality consultation, helping clients analyze:

• ICP-MS of catalyst residues
• GC-MS of bound and free glycerol
• Oxidative stability (Rancimat)
• Metal contamination from feedstocks

Through this integrated approach, Tree Chem reinforces its role not only as a catalyst supplier but as a technical partner in quality assurance.

Table 1 Unified Biodiesel Fuel Standards Comparison

9. Engineering and Logistics: Integrating KOMe into Industrial Operations

Transitioning from KOH or NaOMe to KOMe requires careful engineering integration. Key success factors include:

• Closed-loop nitrogen-blanketed catalyst tanks
• Dry-transfer systems to prevent moisture intrusion
• Precision metering pumps
• Catalyst skid integration with DCS/PLC
• Compatibility with existing methanol recovery lines

Tree Chem’s engineers provide tailored guidelines for each plant layout, including:

• Recommended pipe materials
• Ventilated catalyst unloading protocols
• Moisture control strategies
• Storage stability requirements
• Catalyst dilution procedures for optimal reaction kinetics

Proper integration not only improves safety but also ensures that KOMe’s catalytic advantages are fully realized.

Table 2 Tree Chem Biodiesel Process Optimization Strategy Summary
